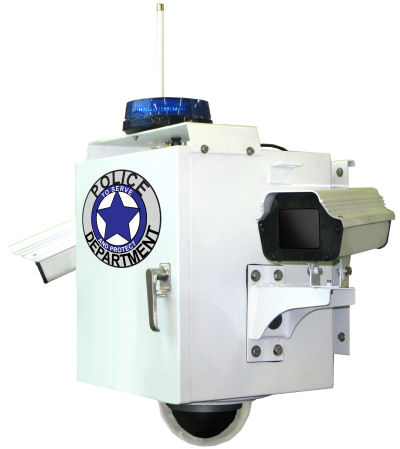

Covert or Visible Surveillance Systems

This city surveillance system is designed for law enforcement and neighborhood protection. It can be a high visibility or a covert IP camera system that looks like a power transformer.

This is customizable vandal-resistant, rugged outdoor surveillance system includes everything you need to establish a neighborhood surveillance system.

There is a choice of PTZ cameras with a complete environmental enclosure and power distributor, surge protection, heater/blower and router.

Optional 4G LTE modem connections make it easy to monitor and view recorded video.

The City Surveillance system can be placed where you need it. Includes stainless steel straps for quick deployment to a pole. Select from a large variety of cameras to create the exact surveillance system you need

IPDeputyPTZ City Surveillance Features

Covert Vandal-Resistant City Surveillance System
Designed to be installed by one person (weighs under 50 lbs)
Built-in storage (45 – 60 days of 24/7 recording)
Wireless connectivity with high gain antenna
Select PTZ camera or up to three (3) fixed cameras
NEMA IP66 Rating to prevent the ingress of water and minute particles
Select optional IR-illumination light kit
Power source AC 110 V (60 Hz)
Operating temperature: -30° F to 130° F (-1° C to + 54° C)

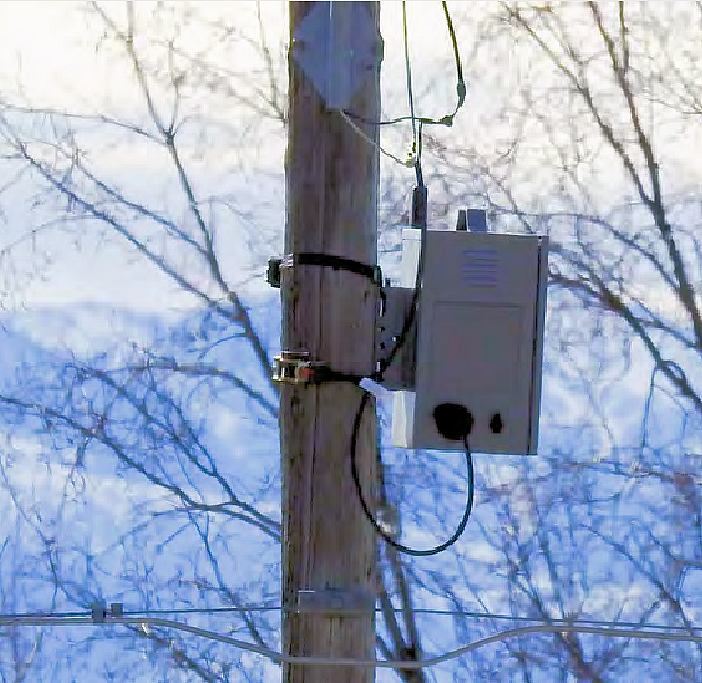

Pole Mounted Surveillance

This is a customizable surveillance system for city surveillance. The vandal-resistant environmental box includes the camera required for your application.

Housing

Designed to blend into urban environment
Weather resistant
Appears as standard pole mount electrical enclosure
Fan cooled & vented
Secure & vandal resistant
Deployed and operated in extreme temperature range-25Fto120F

Smart Control System:

Web interface to remotely monitor the system, includes temperature and power
Scheduled daily system hard restart
Schedule system standby to extend battery
System or individual component can restart from the web interface
Email/SMS text notifications for alarms
Key fob remote for fail-safe restart
Temperature controlled Fan and over heat turnoff protection
Low battery email/SMS notification
High temperature fail safe turnoff to protect components
Browser and software access to camera
Included software for phone and desktop use

Need more details or pricing? Give us a call at 1-800-431-165 or 914-944-3425 or contact us.

IPDeputyNVR Camera System Configurations

Model	IPDeputyNVR	IPDeputyPTZ
Configuration	One fixed camera with variable lenses	One PTZ Camera, with choice of resolution
Resolution	Up to 8-Megapixels	Up to 12-Megapixels
Camera Example	Example of 2-Megapixel camera: XNO-6120R: Extended 12X zoom with IR. Color : 0.03 Lux	Example of 6-Megapixel PTZ Camera: XNP-8300RW: 30X zoom, Color : 0.1 Lux
Lens	5.2 ~ 62.4mm (Optical 12X)	5 ~ 150mm (30X)
Recording	High-performance NVR with extended operating temperature	High-performance NVR with extended operating temperature
Video Storage	Up to 2 TB	Up to 2 TB
Power	110 / 220 VAC	110 / 220 VAC
Environment	IP66 Weather resistant	IP66 Weather resistant

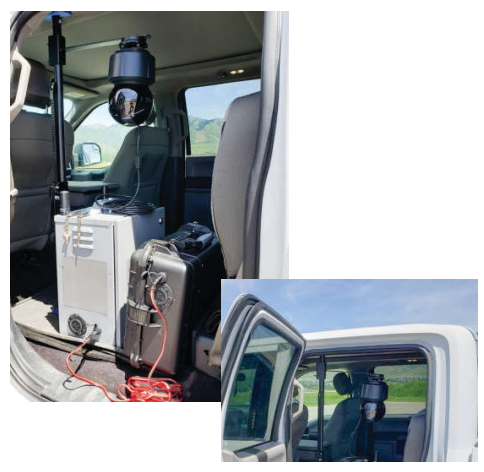

Mobile Tactical Applications

These customized systems are available for tactical surveillance systems.

CONVENIENTLY TRANSPORTED

Power supply and communications equipment conveniently contained inside a heavy-duty wheeled pelican case.

EASY TO USE

Covertly deploy from inside of a vehicle, a friendly home, or set up on an active crime scene for situational real-time monitoring.

SELF CONTAINED POWER SUPPLY

Included constant run with 110v AC, or using 12VDC battery with AC inverter charger.

These systems are custom designed based on your requirements
