RFID Proximity Door Readers

Proximity and Mobile Credentials Readers

Select Proximity RFID Reader | Select Mobile Credential Reader | Select a Door Access System

Select a Controller for these readers: Enterprise Controller | Pro Controller

Access Control Door Readers are devices that are used to control entry using credentials. These credentials contain a unique ID number that provides identification.

The slave door readers connect to an intelligent controller such as the Hartmann controller. The readers support Radio Frequency ID (RFID) credentials that the person carries or mobile credentials provided by the person’s smartphone.

There are RFID credentials that use 125KHz or 13.56MHz Mifare Smartcard format. The mobile credentials use Bluetooth connections to your smartphone.

Access Control Door Readers

The 125KHz readers support either proprietary format 125KHz Prox credentials (that costs less) or an HID Prox card format. The HID format is branded by HID and costs more. The HID type readers are usually used when the organization already has HID type credentials. These readers can be used in many access control systems that support Wiegand type door readers. They are also available in access control kits that include the controller.

Proximity RFID Door Readers

Select Reader that uses: Proprietary Credentials | With Keypad | HID Reader | HID with keypad

RF100P (M)

Prox Door Reader

Simple Proximity RFID Readers

These economical proximity RFID readers connect to an access controller such as the Hartmann controller, using standard Wiegand connections. They can be used indoors or outdoors. There is a choice of credentials that can be used

  • Two credential types and two sizes available –
    • RF100P – 125 kHz proprietary proximity credentials, Mullion mount
    • RF100M – 13.56 MHz Smartcard Mifare type credentials, Mullion mount
    • RFWall-Prox – 125 kHz proprietary proximity credentials, Wall mount single-gang mounting
    • RF103M – 13.56 MHz Smartcard Mifare type credentials, Wall mount
  • Size
    • RF100: 3.2 x 1.7 x .7 inches (81 x 43 x 18 mm)
    • RF103: 4.6 x 3 x .4 inches (117 x 76 x 10 mm)
  • Read range:
    • 125 kHz proprietary – Up to 10cm (P)
    • 13.56 MHz Smartcard – 5cm for (M)
  • External LED control
  • External Buzzer Control
  • Indoor/Outdoor operation, IP65
  • Solid Epoxy Potted
  • Waterproof IP65
  • Reverse Polarity Protection
  • Operating temperature: 14 F to 158 F / -10° C to 70° C

RF120P

Proximity readers with keypad

Proximity door reader with keypad

These proximity RFID readers include a backlit keypad and connect to an access controller such as the Hartmann controller, using standard Wiegand connections. They can be used indoors or outdoors. There is a choice of type of credential. The credential is either 125KHz proprietary or 13.56 MHz Smart card Mifare type.

Two sizes and two types of credentials are available –

  • RF120P – 125 kHz proprietary proximity credentials, Mullion mount
  • RF123P  – Wall type single-gang 125 kHz proprietary proximity credentials
  • RF120M – 13.56 MHz Smartcard Mifare proximity credentials, Mullion mount
  • RF123M – 13.56 MHz Smartcard Mifare proximity credentials, Single-gang wall mount
  • Size
    • RF120: 5.35 x 2.2 x .87 inches (136 x 56 x 22 mm)
    • RF123: 4.6 x 3 x .4 inches (117 x 76 x 10 mm)
  • Read range:
  • 125 kHz proprietary – Up to 10cm (P)
  • 13.56 MHz Smartcard – 5cm for (M)
  • Indoor/Outdoor operation, IP65
  • Metallic
  • Waterproof IP65
  • Operating temperature: -4° F to 122°F (-20°C to 50°C)

RF200H

Proximity Readers that support 125 KHz HID credentials

Proximity HID type Door Reader

These proximity RFID readers support the HID type credentials and connect to an access controller such as the Hartmann controller, using standard Wiegand connections. They can be used indoors or outdoors. There is a choice of sizes and choice of the type of credential.

The credential can be either 125KHz proprietary or 13.56 MHz Smart card Mifare type.

  • Two sizes and two types of credentials are available –
    • RF200H – 125 kHz proprietary proximity credentials, Mullion mount
    • RF203H – 125 kHz proprietary proximity credentials, Wall mount single-gang mounting
  • Size
    • RF200H: 3.2 x 1.7 x .7 inches (81 x 43 x 18 mm)
    • RF203H: 4.6 x 3 x .75 inches (117 x 76 x 19 mm)
  • Read range: Up to 5 inches (126 mm)
  • 125 KHz proprietary – Up to 5-inches (126 mm)
  • Indoor/Outdoor operation, IP67
  • Plastic
  • Waterproof IP67
  • Operating temperature: – 35° F to 149° F / -40° C to + 65° C

RF223H

Proximity Reader with a keypad that supports 125 kHz HID credentials

HID type door reader with keypad

This proximity RFID reader includes a keypad and supports the HID type credentials. It connects to an Access Controller such as the Hartmann controller, using standard Wiegand connections. It can be used indoors or outdoors.

  • Model
    • RF223H – 125 kHz proprietary proximity credentials, Wall mount single-gang mounting
  • Size
    • RF223H: 4.6 x 3 x .75 inches (117 x 76 x 19 mm)
  • Read range: Up to 5 inches (126 mm)
  • 125 kHz proprietary – Up to 5-inches (126 mm)
  • Indoor/Outdoor operation, IP67
  • Plastic
  • Waterproof IP67
  • Operating temperature: – 35° F to 149° F / -40°C to + 65°C

Top

Readers That Use Mobile Credentials

Select Mobile Credential Reader: for Mullion | Wall Mount | With Keypad

These mobile readers use an app in your smartphone that provides a virtual credential. These multi-credential readers not only support the Bluetooth connection to IOS and Android smartphones, but they also can use standard Smartcard type proximity credentials (using 13.56 MHz or optional 125 KHz). The following readers are also available in kits that include the controllers.

BT100M

Mobile Credential Reader and RFID Mullion reader

Bluetooth Mullion Reader

This is one of the most secure and compact readers available. It combines RFID cards with Bluetooth® (Low Energy) technologies. This mullion reader is specially designed for installation in small spaces.

It is compliant with many existing access control systems but is especially powerful when added to the Hartmann controllers.  The BT100M reader uses smartphone virtual credential identification or Prox card credentials.

It can work alongside or replace traditional RFID access badges. It integrates an EAL5+ crypto processor to improve data protection and privacy.

  • Outdoor rated IP65 reader.
  • Interface Wiegand
  • This multi-credential door reader can read mobile credentials and 13.56 MHz credentials.
  • Reading distances: 0 – 6 cm / 0 – 2.36’’ with RFID / 0 – 20 m / 0 – 66 ft with Bluetooth®
  • Mullion mount.
  • Used with Hartmann control panels as well as elevator access control panels.
  • Operating temperatures: – 20°C to + 70°C / – 4°F to + 158°F
  • Dimensions (h x w x d): 110 x 42 x 22 mm / 4.33’’ x 1.65’’ x 0.86

BT103M

Mobile Credential and RFID reader for Wall Mount

Wall mounted Bluetooth and RFID Door Reader

The BT103M reader is similar to the BT100M. The reader is designed for a single-gang wall mount (rather than the mullion type above). It supports Bluetooth credentials and can also read 13.56 MHz (or optional 125KHz) credentials.

This is a secure vandal proof card reader compliant with RFID and Bluetooth® (Low Energy) technologies. Compliant with existing access control systems, the BT103M reader identifies the ID provided by virtual credentials in the mobile phones. It can work alongside or replace traditional RFID access cards. It integrates an EAL5+ crypto processor to improve data protection and privacy.

This multi-credential door reader supports mobile credentials and RFID smartcard credentials. It includes a Wiegand connection. It is an outdoor rated IP65 and single-gang wall mount reader. Used with Hartmann control panels as well as elevator access control panels.

  • Outdoor rated IP65 reader.
  • Interface Wiegand
  • This multi-credential door reader can read mobile credentials and 13.56 MHz credentials.
  • Reading distances: 0 – 6 cm / 0 – 2.36’’ with RFID / 0 – 20 m / 0 – 66 ft with Bluetooth®
  • Wall mount, single-gang mounting.
  • Used with Hartmann control panels as well as elevator access control panels.
  • Operating temperatures: – 20°C to + 70°C / – 4°F to + 158°F
  • Dimensions (h x w x d): 106,64 x 80 x 25,70 mm / 4.17’’ x 3.14’’ x 0.98’’

BT123M

Mobile Credential and RFID Reader Wall Reader with Keypad

Bluetooth and RFID Door Reader with Keypad

The BT123M door reader includes a keypad. This single-gang wall mounted reader supports Bluetooth and 13.56MHz credentials.

This is a vandal-proof reader combining RFID / Bluetooth® (Low Energy) technologies with a capacitive keypad.  It is compliant with many existing access control systems, the reader identifies mobile phones thanks to advanced Prox or handsfree identification modes. It can work alongside or replace traditional RFID access cards. The BT123M door reader integrates an EAL5+ crypto processor to improve data protection and privacy.

This multi-credential reader includes a Wiegand connection. Outdoor rated IP65. Can also read 13.56 MHz credentials. Single-gang wall mount. Used with Hartmann control panels as well as elevator access control panels.

  • Outdoor rated IP65 reader with keypad.
  • Interface Wiegand
  • This multi-credential door reader can read mobile credentials and 13.56 MHz credentials.
  • Reading distances: 0 – 6 cm / 0 – 2.36’’ with RFID / 0 – 20 m / 0 – 66 ft with Bluetooth®
  • Wall mount, single-gang mounting.
  • Used with Hartmann control panels as well as elevator access control panels.
  • Operating temperatures: – 20°C to + 70°C / – 4°F to + 158°F
  • Dimensions (h x w x d): 106,64 x 80 x 25,70 mm / 4.17’’ x 3.14’’ x 0.98’’

Top


Mobile Credential Options

The “BT” series of door readers use the following virtual credentials. The credentials are stored in the smartphone app. There are several optional identification modes so you can select the identification mode that provides the security and convenience that you need.

These 5 modes can differentiate between access points depending on their distance (adjustable from 5 cm / 1.96’’ to 20 m / 787.4’’ *). This means that multiple mobile readers can be installed in the same area.

Card Mode

Place your smartphone in front of the reader just like you would do with a card credential. This virtual credential mode is free.

Mobile Credential

Slide Mode

Slide. Come in! Your hand becomes a card that you always have on you, without needing to take out your smartphone.

This mode requires the purchase of a virtual card credential.

Hands-Free Mode

Just walk past the reader! There’s nothing else to it! The distance from the smartphone to the reader is adjustable to maintain security.

This mode requires the purchase of a virtual card credential.

Tap-Tap Mode

Tap and enter! You can open a door by tapping your smartphone twice in your pocket for close or remote access.

This mode requires the purchase of a virtual card credential.

Remote Mode

This mode can be used to open a garage door or gate from a distance. This mode requires that you press the app button to open the door.

This mode requires a more expensive virtual-card credential.

Top

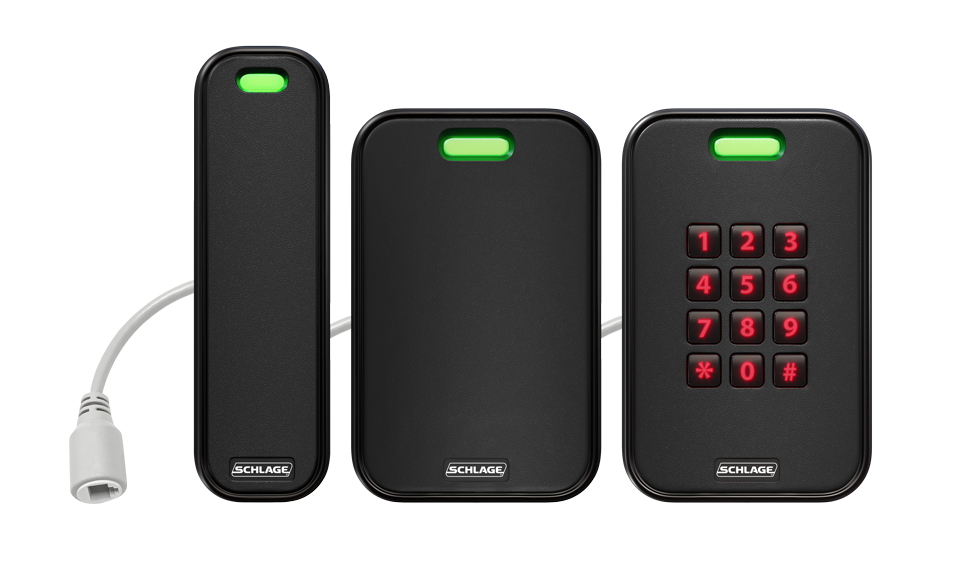

IP Access Control Systems

Intelligent IP door reader systems include built-in controllers or have the controller at the door with the door reader.
