PTZ IR IP Cameras

Long-Range Night-Vision PTZ Network Camera

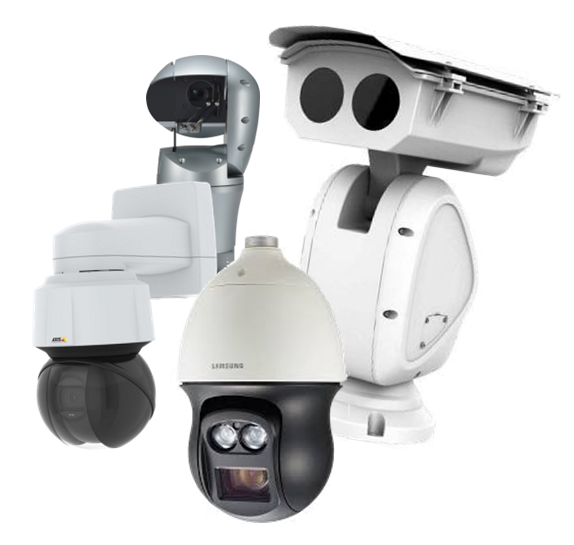

There are two types of long-range PTZ cameras that are designed for both day and night viewing. You can select the off-the-shelf or the custom-designed PTZ cameras:

Off-the-Shelf Long-Range Cameras

PTZ IP camera with IR
PTZ Camera with IR illumination

These PTZ cameras provide IR illumination for night viewing at a range of up to 1,600 ft (500m). See the chart below for examples of several cameras that provide long-range capability.
Read more …

Custom-Built Long-range PTZ cameras

Long-Range Custom PTZ Camera
Long-Range Custom PTZ Camera

These specialized camera systems provide extreme range capability. They are available with long-range laser illuminators as well as thermal cameras that can see for miles without any light.
Read more …


Long-Range PTZ Camera Comparison

PTZ IP camera with IR

Night-vision IP camera systems provide surveillance in total darkness. These network attached PTZ camera systems include built-in IR illumination.  There are a number of off-the-shelf models available and custom-designed very long-range camera systems that are designed to your requirements.

Some of the off-the-shelf PTZ cameras are configurable.  They provide a choice of 940nm, 850nm IR or white light illumination.   All these PTZ cameras include smooth and accurate 360° of rotation with remarkable speeds.

Do you need to see very far away?  If you need a system that can see up to 5 miles away, take a look at the very long-range optical PTZ systems with IR illumination, or the thermal imaging PTZ systems that operate without any lighting.

These standard night vision PTZ network-attached cameras feature up to 37 X optical zoom lens with 850nm IR illuminator. They are excellent for covert nighttime security applications. The Distance Comparison Chart compares how far you can see. It provides the detection, recognition and identification distances of each PTZ camera.

Night vision Camera Features

  • Network Attached IP camera system
  • Advanced IR automatically adjusts based on camera zoom lens movement
  • Illuminate distances over 450 feet away
  • LED Technology: 850 Nanometers
  • NEMA 4x and IP66 Rating to prevent the ingress of water and minute particles
  • 30 images/second @ full resolution (1 Megapixel or 2 Megapixel)
  • Proven network reliability

When you need to see in the dark: For surveillance applications where light is not sufficient, i.e. Night-time scenarios, an infrared illuminator is a great way to enhance your view of sight. Composed of multiple light-emitting diodes (LED’s), the infrared illuminators produce an infrared beam of light which when paired with a day/night camera will illuminate the surrounding area for increased visibility in total darkness.

Range Comparison Chart for PTZ Cameras

The range or distance performance of the PTZ cameras is based on the ability to detect an object, recognize an object, and to identify the object. This is known as the DRI factors that were initially defined by John Johnson.  We have modified this initial definition to provide a more accurate representation of camera performance. Take a look at our article Detection, Recognition, Identification: The New Criteria. Camera range is defined by the number of pixels on target for achieving detection, recognition, or identification

Detection: an object is present. A vehicle can be detected further away than a person, so it depends on the size of the object you are trying to detect.

Recognition: This is defined as the point at which you can classify the type of object. You can tell that an object is a person, animal, or vehicle. You can also determine if it is a truck or a tank.

Identification: There is enough resolution to determine that it is a man or women (by the way the person is dressed), or that the person is carrying a gun.  Note that the Johnson criterion for identification doesn’t include identifying a person’s face. You require much more resolution to provide facial recognition.

Off-the-Shelf PTZ Camera Selection Table

Top

Model Specifications Distance
TVIP-6322RH



More details

1920 x 1080 (2-Megapixel)



Angle for maximum range: 2.24°

Field of view at longest distance 243m

Detection Day Human: 6.2 Km (3.8 miles)



Detection Night with IR: 120m (394 ft.)

Recognition Day: 1.6 Km

Identification Day: 0.820 Km

XNP-6550RH



4K-PTZ-Camera

More Details

1920 x 1080 (2-Megapixel)



Angle for maximum range: 1.23°

Field of view at longest distance 243m

Detection Human Day: 11 Km (7 miles)



Detection Night with IR: 500 m (1600ft.)

Recognition Day: 3 Km (9800 ft. 1.8 miles)

Recognition at night using IR: 500m (1600 ft.)

Identification Day: 1.5 Km (4900 ft. or 0.9 miles)

Identification at night using IR: 500m (1600 ft.)

PNP-9200RH



4K-PTZ-Camera

Note this 4K very high-resolution camera provides a much wider field of view (or viewing area) than the lower resolution cameras.

More Details

3840 x 2160 (8-Megapixel)



Angle for maximum range: 3.8°

Field of view at longest distance 486m

Detection Human Day: 7.3 Km (4.5 miles)



Detection Night with IR: 200 m (656 ft.)

Recognition Day: 1.9 Km (200m at night)

Identification Day: 0.98 Km (200m at night)

TVIP-ULS-IP-HD



TVIP-ULS-IP-HD-XLux (very low light sensitivity)

TVIP-ULS-IP-HD

A special camera that can look up as well as down. Configurable PTZ camera.

More Details

1920 x 1080 (2-Megapixel)



Angle for maximum range: 2.3°

Field of view at longest distance 243m

Detection Human Day: 6.0 Km



Detection Night with IR or white light: Two IR illumination angles 10° and 30° 200m (656 ft.) using white light.

Recognition Day: 1.6 Km

Identification Day: 0.8 Km

WV-SUD638



PTZ IP camera

A rugged camera that can operate in high wind loads of up to 135 mph (216 Km/h). Tilt up and down (90° to -90°). Rugged PTZ camera.

More Details

1920 x 1080 (2-Megapixel)



Angle for maximum range: 2.3°

Field of view at longest distance 243m

Detection Human Day: 6.0 Km (3.7 miles)



Detection Night with IR: Single IR illumination up to 150 m (500 ft.)

Recognition Day: 1.6 Km

Identification Day: 0.8 Km

Y9250-LIR



Y9188 Long-range PTZ cameras

Long-range IR illuminator and very low light sensitivity. Tilt up and down (90° to -90°). Rugged PTZ camera.

More Details

1920 x 1080 (2-Megapixel)



Angle for maximum range: 2.0°

Field of view at longest distance 243m

Day Detection Human: 7.0 Km (4.3 miles)



Night Detection with IR:  800 m (2,625 ft.)

Day Recognition: 1.9 Km

Day Identification: 0.9 Km

D6266-75/100



D6166 dual sensor PTZ camera

Dual optical and thermal camera with built-in IR-illuminator.  75 mm or 100mm thermal lens, and a 6.7-330mm optical zoom lens

More Details

1920 x 1080 (2-Megapixel)



Angle for maximum range: 1.9°

Field of view at longest distance 243m

Day Detection Human: 10 Km (7 miles)



Night Detection with IR: 500 m (1640 ft.)

Thermal Detection with 75 mm: 560 m (1836 ft.)

Thermal Detection with 100 mm: 745 m (2445 ft.)

Day Recognition: 3 Km

Day Identification: 1 Km

Distance Comparison chart for Custom Very Long Range Day / Night Cameras


PTZ Camera Specifications

Specifications for the TVIP-6322RH Dome PTZ IP Cameras

DetailsSpecifications
Video
Max Resolution1920 x 1080
Light SensitivityColor : 0.05Lux
(1/30sec, F1.6, 50IRE)

B/W : 0 Lux (IR LED on)
 Wide Dynamic Range 120 dB
Camera System
 Optical zoom 32X
4.4 ~ 140.8mmH : 62.8˚(Wide) ~ 2.23˚(Tele)
 IR Illumination 150m  (492.13ft)
 AudioAudio in
Audio out
 Alarm and Outputs Input 4
Output 3 (relay)
 Power 24 VAC  only  /  6A
Max.  30W (Heater off)
Max. 35W/90W
(Heater off/on, and IR on)
Operating  Temperature
Humidity
 -50°C ~ +55°C (-58°F ~ +131°F)
Less than 90% RH

Top



Configurable TVIP-ULS-IP-HD PTZ Camera with Illumination

PTZ with illumination

During the day the TVIP-ULS-IP-HD PTZ provides enough resolution to identify a license plate over 700 ft. (213m) away. The PTZ system includes a 2-megapixel camera and up to 129mm zoom lens.  At night the distance depends on the type of illumination used.

The model TVIP-ULS-IP-HD-XLux provides very low-light sensitivity of 0.006 lux in color.

Select 850nm, 940nm (covert), or white illumination. Maximum night view range is 200 m (with white light).

This special long range camera can look up as well as down and is available with optional illumination, power, and wiper.

It is designed for rugged applications, and can even be mounted on vehicles.

TVIP-ULS-IP-HD (-XLux) Features:

  • Camera Full HD 1080p, 30x, 60fps
  • Lens 30X zoom:
    • TVIP-ULS-IP-HD: f=4.3 mm (wide) ~ 129.0 mm (tele), Horizontal Viewing Angle: from 63.7° (wide) up to 2.3° (tele)
    • TVIP-ULS-IP-HD-XLux: 4.4 (wide) – 135 mm (tele), Horizontal viewing angle 61° (wide) to 2.5° (tele)
  • TVIP-ULS-IP-HD Minimum Illumination:
    • Color: 1.4lx, F1.6 AGC on, 1/30s 50 IRE (Normal mode)
    • Color: 0.35lx, F1.6 AGC on, 1/30s, 50 IRE (High Sensitivity mode)
    • B/W: 0.05lx, F1.6 AGC on, 1/30s, 50 IRE (Normal mode)
    • B/W: 0.013lx, F1.6 AGC on, 1/30s, 50 IRE (High sensitivity mode)
  • TVIP-ULS-IP-HD-XLux Minimum Illumination :
    • Color: 0.006 lx, F1.6, 30 IRE
    • B/W: 0.0006 lx, F1.6, 30 IRE
  •  Illumination:
    • Horizontal beam: 10° or 30°
    • Wavelength: 850nm, 940nm, white light
  • Video compression H.264/AVC and MJPEG
  • Certified ONVIF, Profile S
  • Day/Night (Auto ICR: automatic removal of IR filter)
  • De-fog feature
  • Up to 4 simultaneous video streams
  • 1 alarm input and 1 relay output
  • Variable speed: 0.1°-200°/s Pan/Tilt
  • Horizontal continuous rotation, vertical -90°/+90°
  • Position accuracy: 0.05°
  • Up to 250 Presets Integrated wiper
  • Total control of the auxiliary functions through the PTZ ASSISTANT
  • Power supply: 230Vac, 24Vac or 120Vac
SPECIFICATION DETAILS TVIP-ULS-IP-HD TVIP-ULS-IP-HD-XLUX
Video
Max Resolution1920 x 1080 1920 x 1080
Light SensitivityColor: 0.35lux, F1.6 AGC on, 1/30s, 50 IRE (High Sensitivity mode)
B/W: 0.013lx, F1.6 AGC on, 1/30s, 50 IRE (High sensitivity mode),  0 Lux with IR
Color: 0.006 lux, F1.6 30 IRE
B/W: 0.0006 lx, F1.6, 30 IRE,  0 Lux with IR
Wide Dynamic RangeNo 120dB
Camera System
Optical zoom30X
4.3 ~ 129.0 mm
 30X
4.5 ~ 135 mm61.6° (wide end) up to 2.50° (tele end)
IR Illumination10 degree: IR 940nm =125m (410 ft)
30 degree: IR 850nm = 175m (574 ft.)
30 degree: White light = 200 m (656 ft.)
Horizontal beam: 10° or 30°



Wavelength: 850nm, 940nm, white light

AudioNo No
Alarm and OutputsInput 1
Output 1 (relay)
Alarm inputs: 1



Relay outputs: 1 (1A, 30Vac/60Vdc max)

Power• 230Vac, 0.4A, 50/60Hz
• 24Vac, 4A, 50/60Hz
• 120Vac, 0.8A, 50/60Hz
230Vac, 0.4A, 50/60Hz
120Vac, 0.8A, 50/60Hz
24Vac, 4A, 50/60Hz
Operating Temperature
Humidity
-40°C~50°C using 24VAC
(-40°F~122°F)
 -40°C (-40°F) up to +60°C (140°F)



Rugged WV-SUD638 PTZ Camera with IR

The WV-SUD638 is an environmentally rugged camera designed to meet extreme weather conditions.  Using the latest aerodynamic technology and salt-air corrosion resistant glass fiber body, this IP PTZ camera can withstand the beating from tropical storms, arctic blizzards, extreme hot and cold temperatures, and gale-force winds.

WV-SUD638 Specifications

Features Include:

PTZ Camera
  • Full HD (1080p) 60 fps, x30 zoom lens
  • Built-in wiper and Auto defroster
  • Wind load durability 60 m/s (135 mph) (operation), 80 m/s (180 mph) (non-destructive)
  • Video SAS (Stability Augment System) for high-class image stabilization
  • “Sphere vision” provides 360° 3D viewing (Pan: 360° endless, tilt: 90° to -90°)
  • Temperature -50 ºC to +60 ºC (-58 °F to +140 °F)*
    * Natural Silver model only. Not available IR LED Unit when the temperature is over 55 °C.
    Gray & Brown model: up to +55 °C.
  • IP67, IP66, IK10 certified
  • Optional IR LED light (up to 150 m/500 feet, zoom interlocking)
  • Anti-salt air corrosion protection ideal for seaside operations
  • Smart coding mode for additional compression

Specifications for PTZ Camera

WV-SUD638 Specification
Video
Max Resolution 1920 x 1080
Light Sensitivity Color: 0.06 lx (F1.6, Maximum shutter : Off(1/30 s), AGC : High
B/W : 0.02 lx (F1.6, Maximum shutter : Off(1/30 s), AGC : High)0 Lux (IR LED on)
 Wide Dynamic Range  105 dB
Camera System
 Optical Zoom  30X
4.3 ~ 129.0 mm
 IR Illumination  150m  (492.13ft)
 Audio Audio in
Audio out
 Alarm and Outputs  Input 1
Output 2 (relay)
 Power AC100 to 240 V, 50 Hz / 60 Hz
Operating  Temperature
Humidity
 -50°C ~ +60°C (-58°F ~ +140°F)
Less than 90% RH



Y9250-LIR PTZ Optical Camera With IR

This PTZ camera includes a very long-range IR illuminator. The IR has a range of 800 m.  The 2-Megapixel camera has very good low light sensitivity. The 0.002 lux color low light sensitivity provides very good low-light operation. When it switches to gray-scale (or BW mode), it can see things at an amazing 0.0002 lux. It can operate in full moonlight.

During the daytime, the camera’s 5.6 mm to 207 mm (36X) zoom lens can detect a person that’s 7000 m (over 4 miles away).  If the field of view is partially illuminated by the moon or standard lights, it can recognize a person at over 1900 m (over 1.1 miles) away.

At night the built-in IR illuminator has a range of 800 m. This camera has the longest nighttime range of all the off-the-shelf PTZ cameras.

Long-Range PTZ with IR
Long-Range PTZ with IR

Specifications for Long-Range PTZ Camera

Y9250-LIR Specification Details
Optical Video
Max Resolution 1920 x 1080
Light Sensitivity Color: 0.002 Lux @(F1.8, AGC ON);



B/W: 0.0002 Lux @(F1.8, AGC ON); 0 Lux with IR

Wide Dynamic Range Digital
Camera System
Optical Zoom 36× Optical
5.6 mm to 207 mm, 59.8° to 2.0° (wide to tele)
IR Illumination 800 m  (2625 ft ) Auto adjust intensity
Audio Audio in
Audio out
Alarm and Outputs Up to 7-ch relay input (0 to 5 VDC)
Up to 2-ch; supports alarm linkage
Power 24 VAC, 120 W
Operating Temperature
Humidity
-40° F to 158° F (-40°C to 70°C); Humidity: ≤ 90%
Network IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP,
SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE.


D6266-75/100 PTZ Thermal-Optical Camera

This camera system includes an optical camera and thermal camera in one unit. A thermal camera provides different viewing characteristics than an optical camera. It does not require any light, but rather detects the thermal radiation from the target. The more the target temperature differs from the surrounding area, the brighter the object will appear.  For example, it is excellent for detecting a warm human in a cold snowfield. You may miss the person in an all-white outfit on a snowfield, but you will not miss them with the thermal camera. The “hotter” the object the further away it can be detected.

The thermal camera has a resolution of 640 x 512, and with the 75 mm thermal lens can detect a person about 1800 ft (560 m) away.  The 330mm zoom lens on the optical camera provides daytime detection at about 7 miles (10Km) away.

When there is enough light, the camera can “recognize” if it is a person or dog at a distance of about 1.5 miles (2.4Km).

Optical and Thermal camera
Optical and Thermal camera

We can “identify” if the person we see is a man or women (based on how they are dressed), at a distance of almost one mile (1.5Km). All this is during the day.

At night, this thermal-optical camera can detect a person about 1/3 of a mile away (560 m). The thermal detection distance can be greater (over 1000 m) depending on the temperature difference of the object you are viewing. The IR-illuminator has a range of 500 m.

A very nice feature of this camera is that the IP video for both the thermal and optical camera is on a single network connection, with two separate streams.

Specifications D6266-75 D6266-100
Optical Video
Max Resolution 1920 x 1080 1920 x 1080
Light Sensitivity Color: 0.05 lux @ (ƒ/1.8 , AGC on);



b/w: 0.01 lux @ (ƒ/1.8 , AGC on)

Color: 0.05 lux @ (ƒ/1.8 , AGC on);



b/w: 0.01 lux @ (ƒ/1.8 , AGC on)

Wide Dynamic Range 120 dB 120 dB
Thermal Camera System
Resolution 640 x 512, Vanadium Oxide Uncooled Focal Plane Detectors640 x 512,Vanadium Oxide Uncooled Focal Plane Detectors
Lens 75 mm,8.3° 6.6° lens angle 100 mm, 6.23° 4.98° lens angle
Optical Camera System
Optical zoom 49X
6.7 -330 mm, 41.3° – 1.2° (Wide-Tele)
49X
6.7 -330 mm; 41.3° – 1.2° (Wide-Tele)
IR Illumination 500 m (1,640;ft) Auto adjust intensity 500 m (1,640 ft) Auto adjust intensity
Audio Audio in
Audio out
Audio in
Audio out
Alarm and Outputs Up to 7-ch relay input (0 to 5 VDC)
Upto2-ch; supports alarm linkage
Up to 7-ch relay input (0 to 5VDC)
Up to 2-ch; supports alarm linkage
Power 24 VAC, 120 W 24 VAC, 120 W
Operating Temperature
Humidity
-40° F to 140° F (-40° C to 60° C)
Humidity: 90%
-40° F to 140° F (-40° C to 60° C)
Humidity: 90%
 Network Single network connection with two video streams. One for the optical camera and the other for the thermal camera. Single network connection with two video streams. One for the optical camera and the other for the thermal camera.



Need help selecting the right camera?  We can help.  Just contact us at 800-431-1658 in the USA, or at 914-944-3425 everywhere else, or use our contact form.
